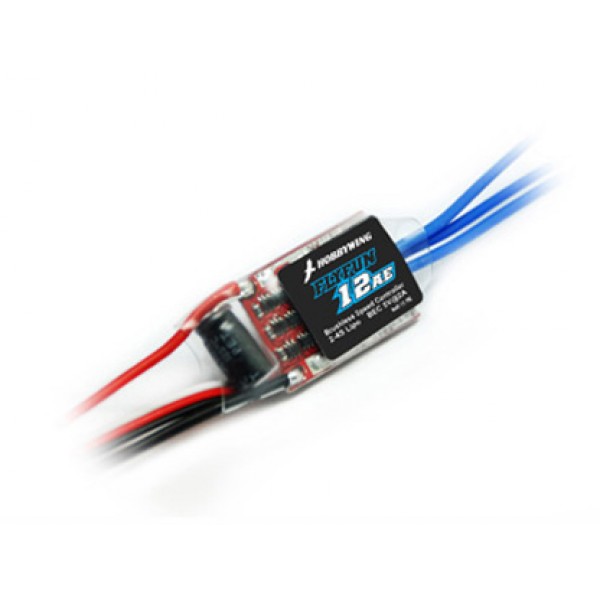

Hobbywing FlyFun 12A ESC

SKU: HWG-SC-0236

Availability: In stock

$16.00

Details

Note: doesn't include connectors in the package

1 Specification
1.1 Output: Continuous 12A, Burst 15A up to 10 Secs
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC:Pentium-12A-E: 2A / 5V (Linear mode).
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.(BLM: BrushLess Motor)
1.5 Size: 32mm (L) * 24mm (W) * 10mm (H).
1.6 Weight: 13g.

2 Features
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items:

  • Brake Setting: brake enabled / brake disabled.
  • Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
  • Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
  • Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
  • Start Mode: normal / soft / very soft.
  • Timing: low / medium / high.
  • Reset: reset all the programmable items to their default settings.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
