Details
Specifications:
- Empty Weight: 282g(9.95oz)
- Wheelbase: 450mm
- Flying Weight: 800-1200g(28.22-42.33oz)
- prop: 10x4.5 (not included)
- Battery: 3S 1500-2600mAh(not included)
- Motor: 2212-2216(not included)
- ESC: 20A-30A(not included)

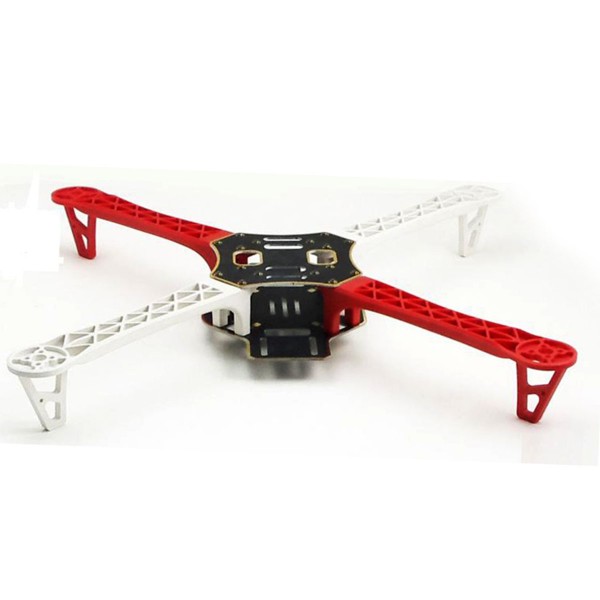

The arms are made of nylon66 and 30% ultra high strength materials. They are more resistant to shock and impact.
The lower motor mounting location makes the CG of quadcopter lower.
A large space for control system and electronic stuff.
Frame plates are also the PCB board which can be used as distribution board. This makes the connection between the battery and ESCs quite easy.
The new specially designed M2.5 bolts are for secure the arms to the frame plates.
It shows how the ESCs are connected.
Additional Information
| SKU | FYM-QC-1954 |
|---|
Customer Reviews
- Great frame - buy a few Review by Nick
-
I have purchased this frame and it was very easy to setup. I have 4 esc's zip tied to the under side of the arms and even have room to mount LED's. I do have to say that I wish the booms were a little stronger. As a novice pilot, during a crash the boom breaks near the motor and can't be easily repaired. I bought 2 frames and used the second as spare parts. Even though I've broken a few parts from crashing it's very good and the price makes it ok to crash and break a few parts. (Posted on 8/9/2013)Quality Value Overall - Nice frame Review by David
-
This is a nice frame went together easily it seems sturdy enough. I mounted Hobbywing SkyWalker QuattroQuality Value Overall
20A x 4 Four-in-One Quadcopter ESC on the bottom there was plenty of clearance and placed the battery in
the middle still plenty of room for cameras or whenever. (Posted on 5/28/2013) - Good frame, but it does have it's issues. Review by Craig
-
The frame is like many other DJI F450 clones, but I really don't like the PCB layout, especially the solder points for the ESC's. They are really close together and are located on a really funky angle. (Posted on 5/15/2013)Quality Value Overall - good product Review by Allen
-
It's a good frame. My only problem was the Skywhatever 4 in 1 ESC doesn't fit the top part without hitting the tops of the frame bolts, and can not fit in the lower part with a typical 3 cell battery. I had to raise it up slightly with a square balsa standoff, then stick my Ardupilot control board on top of that. Unless you use this exact setup, it will not effect you though. Other than that 1 quirk, it's a quality frame at a great price.Quality Value Overall
4 park 400s equivalents and a 3s 4k battery will hover this frame at 45% power on 10x4.7 slow flys. (Posted on 4/24/2013) - Its a Quad!! Review by DS_Meerkat
-
This quad is just like other "Flame Wheel" quads out there by numerous manufacturers. DJI, Hobbyking and others make this same "type" of quad. However, the arms on this thing are thinner than others I've seen, so you are more likely to break them. Its a nice quad with PCB (no need for power distro board) but order extra arms if your a newbie!! (Posted on 4/10/2013)Quality Value Overall - economical, easy frame for a 450 size quad Review by probro doinkedit
-
had this quad soldered up and rtf in 1.5 hrs (Posted on 2/15/2013)Quality Value Overall
