Details

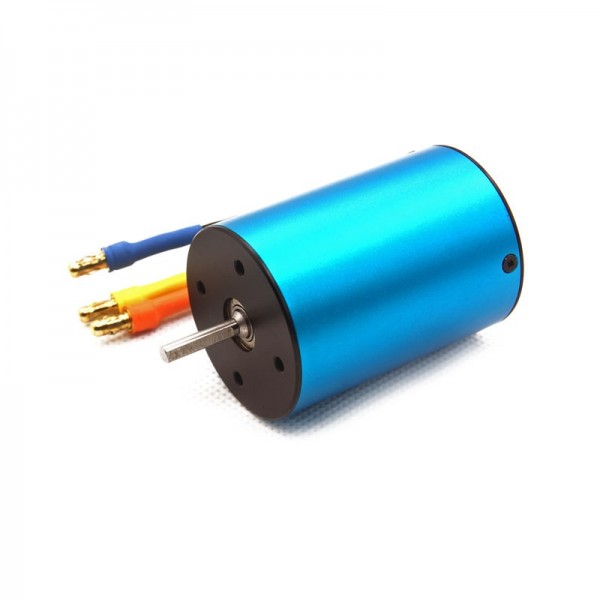

GForce 3650W series provides a full line of in-runner brushless motors with 8 different KVs to choose from. 3650W brushless motors feature 4 pole design and sensorless construction, and are can be used as drop-in replacement for most 1/10 scale vehicles.
|
Sensored /Sensorless |
sensorless |
Thickness of lamination |
0.35mm |
|
Turns |
|
No-load Current |
0.47 |
|
KV |
1733 |
Resistance (Ω) |
0.029 |
|
Poles |
4 |
Battery cell |
2-3 |
|
Diameter(mm) |
35.9 |
Operation Temperature |
<130C |
|
Motor length(mm) |
50 |
Max Temperature |
<180C |
|
shaft diameter(mm) |
3.175 |
Suitable car scale |
1/10 |
|
Shaft length(mm) |
15 |
Suitable ESC |
>35A |
|
Weight(g) |
180 |
Connector Type |
3.5mm bullet conntector |
Additional Information
| SKU | XTM-MT-1207 |
|---|---|
| Motor Weight (g) | 180 |
| KV | 1700 |
| Estimated Output (watt) | No |
| Motor Type | In-Runner |
| Motor Class | B540 (Φ36mm) |
| Motor Usage | Airplane, EDF Jet, Car |
